Trader Meerkat Electronic On/Off Push Button Mechanism Switch

Trader Meerkat Electronic On/Off Push Button Mechanism Switch

by TEDS LIGHTS AND FANS
$64.88
Trader Meerkat Electronic On/Off Push Button Mechanism Switch
  • Soft Touch Push Button ON/ OFF Switch.
  • Blue LED Indicates Device Status.
  • Returns To OFF After Loss Of Power.
  • Compatible With A Wide Range Of Load Types Including Wire Wound Transformers & Fan Motors.

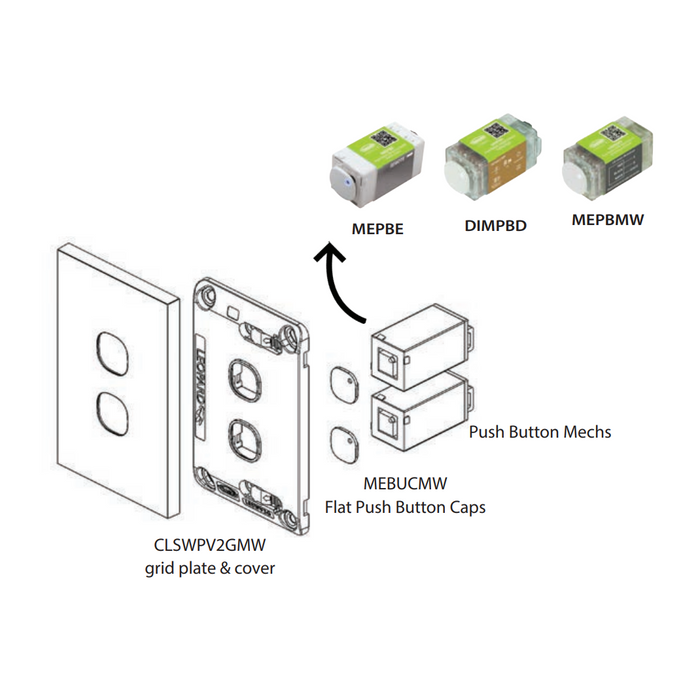

  • Compatible With Trader And Clipsal* Style Wall Plates.
  • Multi-Way Switching Compatible With The MEPBMW Push Button, Multi-Way Remote, Dimming And On/Off.

OPERATING CONDITIONS

  • Operating Voltage: 230 – 240V a.c. 50Hz
  • Operating Temperature: 0 to +50 °C
  • Compliance Standard: CISPR15, AS/NZS 3100, AS/NZS 60669.2.1
  • Maximum Load: 1200W / 500VA
  • Maximum Current Capacity: 5A
  • Terminals: Screw Terminals suit 0.5mm2 to 1.5mm2 stranded cable (bootlace terminal recommended)

Meerkat Mechanisms Are Compatible With All Trader Switches And Sockets Including Flat Cat, Snow Leopard, And Clouded Leopard And Compatible With Other Brands For Confirmation On Which Ones And Other Specialised Mechanisms In This Range, Please Contact Us During Business Hours.

DOWNLOAD DOCUMENTS

Data Sheet

Range Flyer
